Features

Key Features

• High Efficiency: Delivers over 85% charging efficiency.
• 3-Stage Charging Process: Microprocessor-controlled stages optimize battery charging and health.
• Temperature Adaptation: Adjusts charging voltage based on ambient temperature to prevent overcharging or undercharging.
• Pulse Repair Function: Capable of restoring severely discharged or heavily sulfated batteries.
• Safety Protections: Reverse polarity, short-circuit, and spark-free contact protection.
• LCD Display: Shows real-time voltage, current, temperature, and charging status.
• Automatic Functionality: Prevents overcharging even if connected for extended periods.

Specifications

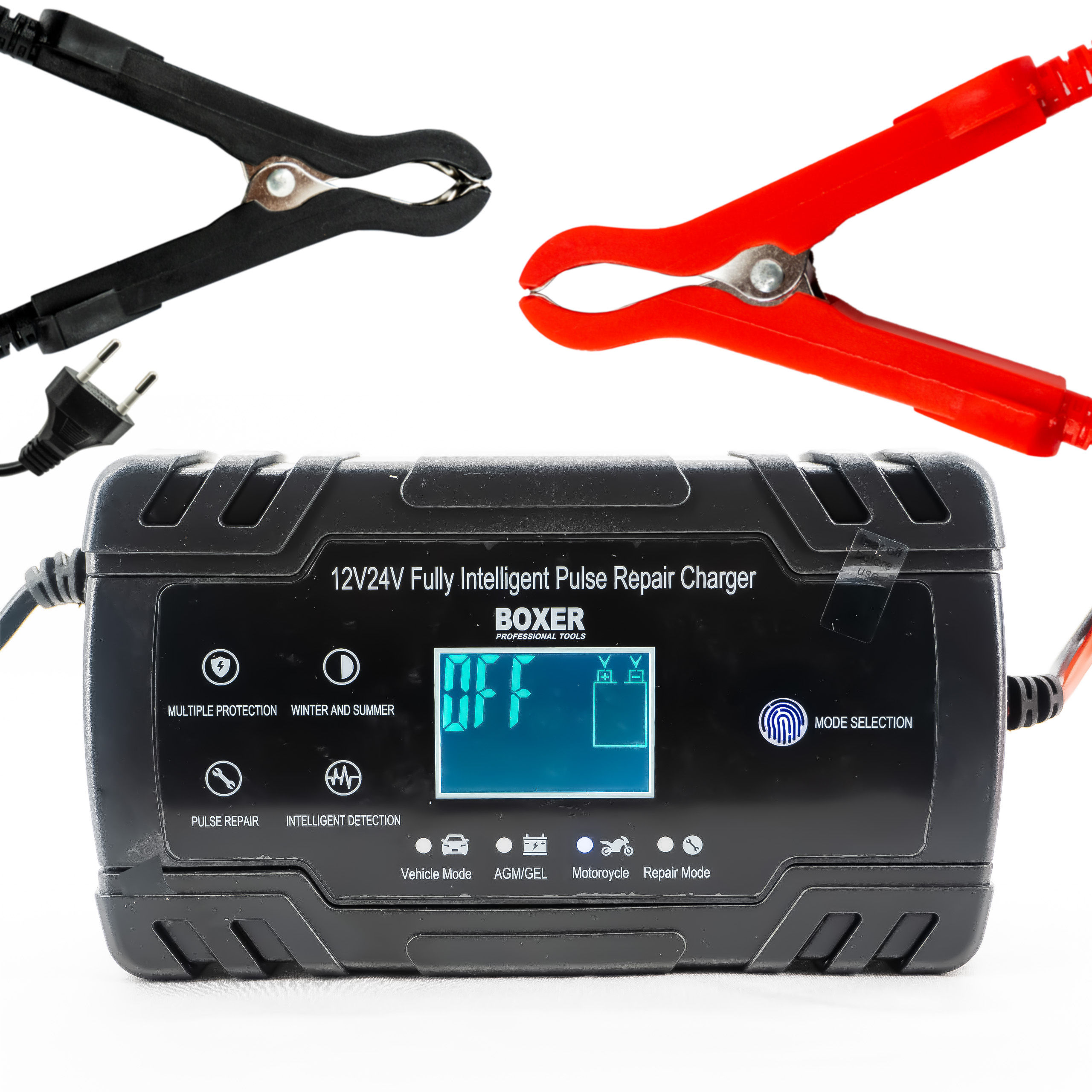

• Model: BX-3201
• Type: Smart & Automatic
• AC Input: 100-240V, 50/60Hz
• Output Voltage: Auto-switch between 12V and 24V
• Output Current: 12V 8A, 24V 4A
• No-Load Voltage: 13.8V
• Minimum Start Voltage: >2.0V
• Input Power: Max 140W (with load); 3.2W (no load)
• Cooling: Equipped with a fan for thermal management
• Approval: CE Certified

Environmental Characteristics

• Operating Temperature Range: -20°C to +45°C
• Storage Temperature Range: -30°C to +70°C
• Operating Humidity Range: Up to 90% RH

Important Safety Instructions To ensure safe and efficient operation:

• Use only on specified 12V and 24V lead-acid batteries.
• Avoid exposure to extreme temperatures or sunlight.
• Keep ventilated to prevent gas buildup during charging.
• Avoid contact with battery acid, and rinse immediately if contact occurs.
• Do not use on frozen or damaged batteries.
• Keep away from flammable objects or smoking areas.
• Disconnect from the AC outlet before maintenance.

This smart charger is designed for safe, efficient, and user-friendly battery maintenance, ensuring extended battery life and reliable performance.
